| Material | High Speed Steel |
| Finish Type | Steel |
| Shank Type | Hex |
| Brand | K Kwokker |
| Tool Flute Type | Straight |
- The Core of the K Kwokker 1/4" Hex Shank Self Centering Hinge Drill is Made of High-speed Steel: Not limited to wooden doors, windows, but can also be used for drilling operations on aluminum, copper, stainless steel and other metal door and window hinges
- Self Centering Drill Bits Tips are Custom Beveled for More Accurate Opening and Less Off-Center to Help Properly and Centrally Mount Hinges: Vix bits of the set has a proper beveled on bottom of barrel, which seats well into a counter sunk hinge hol
- Universal 1/4" Hex Shank Design for a Wide Range of Applications. Self centering clic change door hinge combined center drill bit includes 9 vix bit and 1 hex key. The vix bit are 5/64", 7/64", 7/64", 9/64", 9/64", 11/64", 5MM, 13/64", 1/4"
- The Colorful Aluminum Alloy Case is Pleasant and Easy to Recognize: Self centering hinge drill bit set self center with unique design and well-made, it's a good choice for DIY enthusiast and professionals, whether it's for self-use or as a gift
- How to Use: Make sure to tighten the centering drill bit before use. When open the hole, for loose and soft wood, choose the smaller one, for hard wood, choose the corresponding or larger one
K Kwokker 1/4" Hex Shank VIX Bits Self Centering Drill Bits Set Door Hinge Drill Bit for Metal Wood Cabinet Window Aluminum Copper Stainless Steel
Self Centering Drill Bits Tips are Custom Beveled for More Accurate Opening and Less Off-Center to Help Properly and Centrally Mount Hinges:
Vix bits of the set has a proper beveled on bottom of barrel, which seats well into a counter sunk hinge hol. Others: have flat bottoms

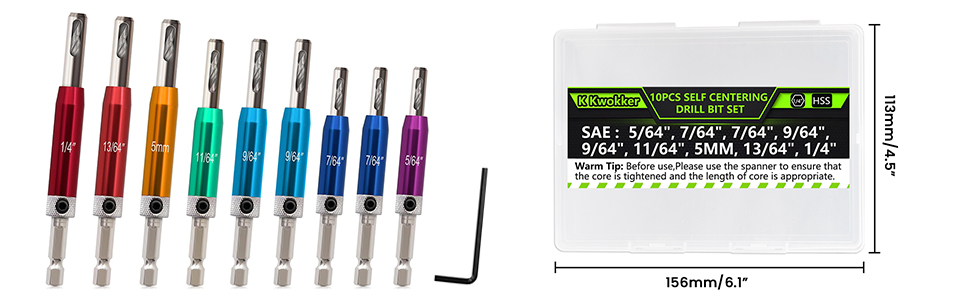

Specification Dimensions:

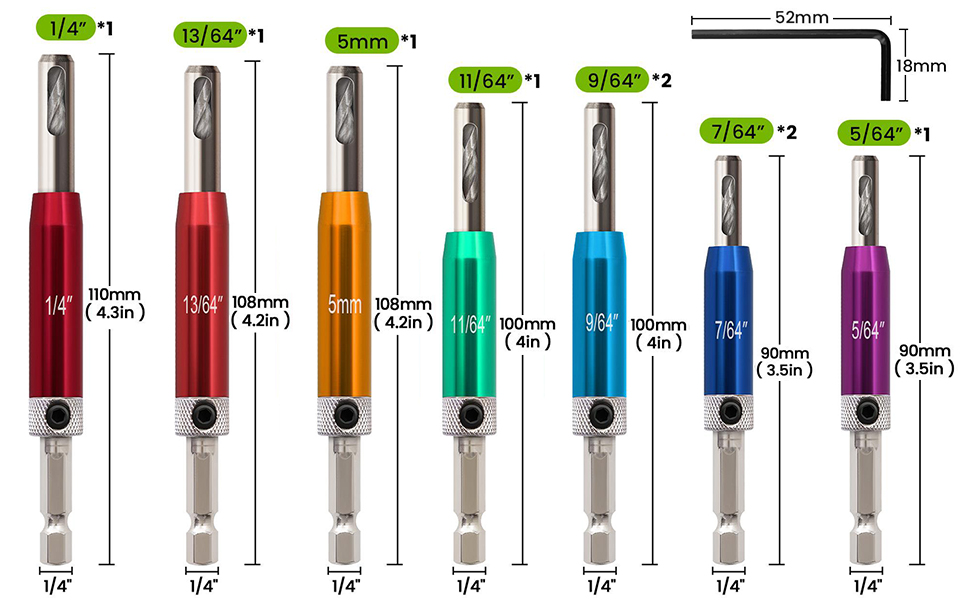

- 9Pcs hinge drill bit set self center: 5/64", 7/64", 7/64", 9/64", 9/64", 11/64", 5MM, 13/64", 1/4".
- 1Pc Hey key wrench.
- 1Pc Storage case.
Vix Bits Self Centering Drill Bit Set Recommended Drilling Speed:
- - 5/64" locating holes are approximately 2mm in diameter, ideal for 2.2-2.8mm self-tapping screws. Recommended Drilling Speed: 1800-3000 speed(r/min).
- - 7/64" locating holes are approximately 2.8mm in diameter, ideal for 3-3.5mm self-tapping screws. Recommended Drilling Speed: 1400-1800 speed(r/min).
- - 9/64" locating holes are approximately 3.5mm in diameter and are ideal for 4-4.5mm self-tapping screws. Recommended Drilling Speed: 1000-1400 speed(r/min).
- - 11/64" locating holes are approximately 4.5mm in diameter, ideal for 5-5.5mm self-tapping screws. Recommended Drilling Speed: 800-1000 speed(r/min).
- - 5mm locating holes are approximately 5mm, ideal for 5.5-6mm self-tapping screws. Recommended Drilling Speed: 700-800 speed(r/min).
- - 13/64" locating holes are approximately 5.2mm, ideal for 6-6.5mm self-tapping screws. Recommended Drilling Speed: 700-800 speed(r/min).
- - 1/4" locating holes are approximately 6.35mm, ideal for 7-7.5mm self-tapping screws. Recommended Drilling Speed: 600-700 speed(r/min).

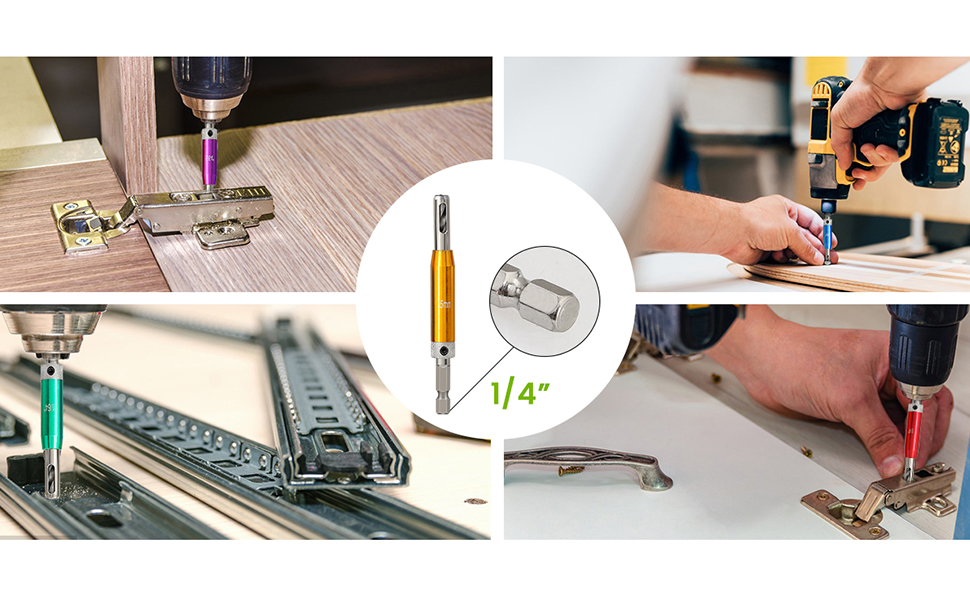

Self centering drill bit set for hinges, hardware, or any time you need to precisely locate holes
- The vix self centering drill bit set features self-centering to reduce bit walking increases precision and efficiency when drilling.

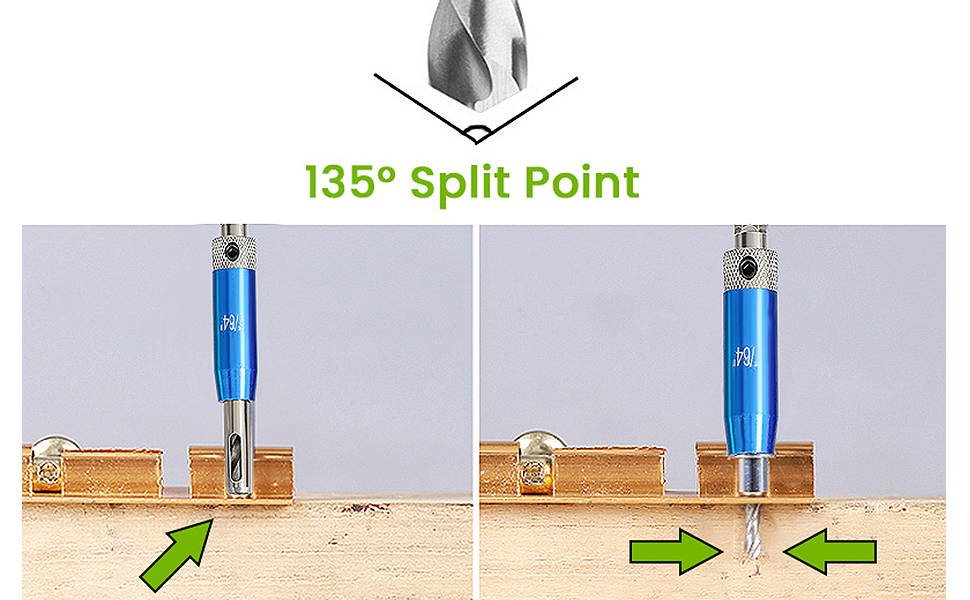

- 135° Split Point inclined blade drill bit make drilling easier and faster.
Warm Tips:
- Use low speed when drilling (generally keep between 2000r/min and 3000r/min). Too fast will deviate from the center, the centering drill bit will break or jam.
- When drilling, adjust according to the hardness of the wood. If the wood is soft, you can choose a smaller center drill. If the wood is hard, you can choose the corresponding or larger one.
- If the hinge centering drill bits cannot be pulled out after drilling, use a hex wrench to separate the drill.
Good vix bits self centering drill bit set bring more beauty to life.
